Toroidal Roller Bearing Alternatives: Cross-Brand Wholesale Supplier

Matching dimensions alone does not guarantee a functional substitute for toroidal roller bearings.

Successful cross-brand substitution of CARB or toroidal roller bearing alternatives requires strict verification of internal clearance, misalignment capacity, and customs documentation consistency, rather than simple dimensional matching.

I still remember the chill of the early morning air at the port of Antofagasta. A container destined for a major copper mine in Chile sat immobilized on the tarmac. The issue was not the cargo itself, but the paperwork. The bill of lading declared a specific European brand’s CARB bearing model, yet the physical units inside were domestic equivalents sourced for their cost-effectiveness and availability. Customs officials flagged the discrepancy between the declared brand and the actual markings. The shipment was held for days, threatening a scheduled plant overhaul. We resolved it only after submitting a detailed technical equivalence declaration, proving that the domestic units met the same ISO dimensional standards and load ratings as the original specification. That incident reshaped my approach to sourcing. It highlighted that finding viable Toroidal roller bearing alternatives is not just about engineering compatibility; it is about navigating the complex intersection of technical specifications and international trade compliance. [NEED_CITE: ISO standards for rolling bearing dimensions and tolerances]

The search for alternatives often stems from supply chain volatility. When original equipment manufacturers face long lead times, distributors and end-users look for substitutes. However, the assumption that any bearing with the same outer diameter, inner diameter, and width will work is a dangerous oversimplification. The unique design of toroidal bearings, which combines the self-aligning capability of spherical roller bearings with the high radial load capacity of cylindrical roller bearings, demands precise parameter matching.

Why Do Standard Spherical Roller Bearings Fail as Direct Substitutes?

Spherical roller bearings cannot fully replicate the low-friction axial displacement capabilities of toroidal designs.

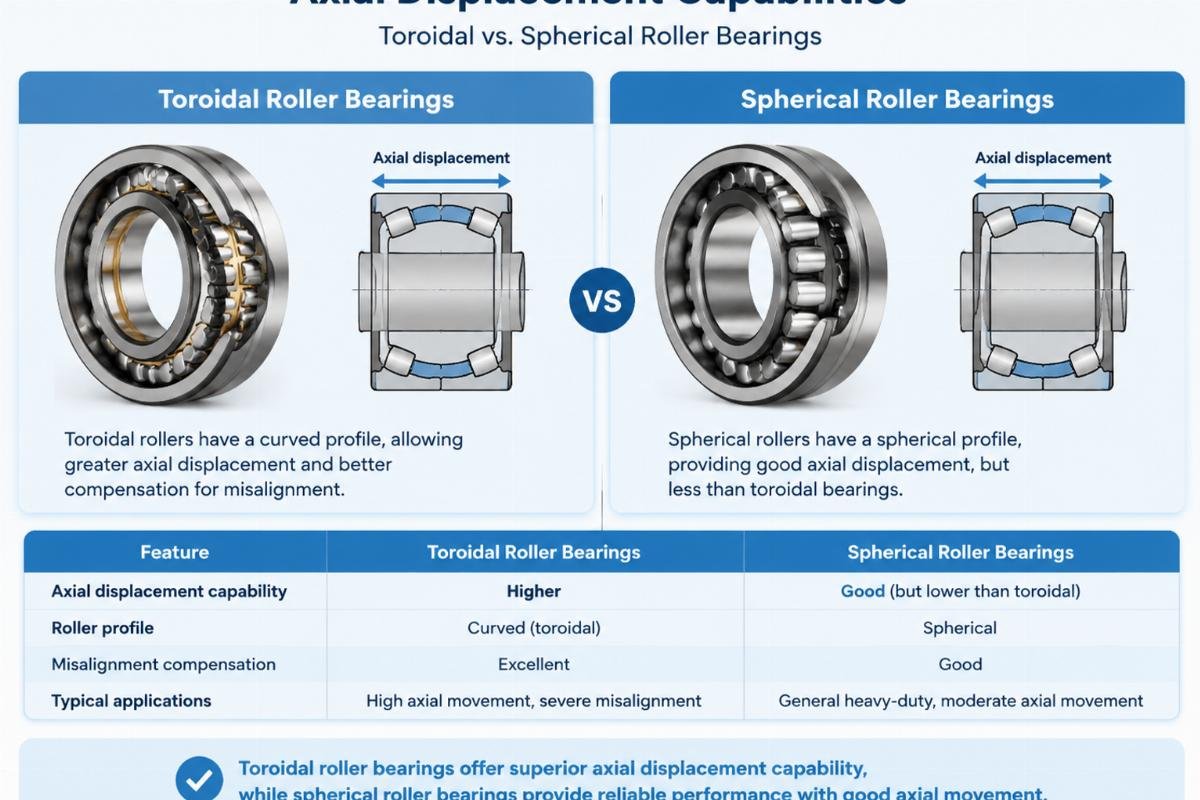

Many buyers initially consider standard spherical roller bearings as the most accessible Toroidal roller bearing alternatives. While they share the ability to accommodate misalignment, their internal mechanics differ significantly. Spherical bearings use barrel-shaped rollers that can handle combined radial and axial loads but generate higher friction during axial displacement. In contrast, toroidal bearings utilize asymmetrical rollers that allow for free axial movement within the housing, accommodating thermal expansion without inducing additional stress on the bearing seats. [NEED_CITE: Comparative friction coefficients between spherical and toroidal bearing designs]

Consider a case involving a cement mill in Southeast Asia. The facility faced a critical shortage of original toroidal units for their kiln drive. The maintenance team opted for a direct swap with available spherical roller bearings, assuming the load ratings were sufficient. Within weeks, the bearings overheated. The root cause was not the radial load capacity, but the restricted axial movement. The spherical bearings could not accommodate the thermal expansion of the long shaft as freely as the toroidal design, leading to excessive axial forces and premature fatigue. This failure underscores why understanding the specific application requirements is crucial when evaluating Toroidal roller bearing alternatives.

This comparison illustrates that while spherical bearings are robust, they are not a drop-in replacement for applications requiring significant axial float. When sourcing Toroidal roller bearing alternatives, engineers must verify if the application allows for the higher friction associated with spherical designs or if a different solution is required. [NEED_CITE: Load rating calculation methods for rolling bearings]

How to Map CARB Bearing Cross References Accurately

Cross-referencing requires more than matching part numbers; it demands validation of internal geometry and clearance classes.

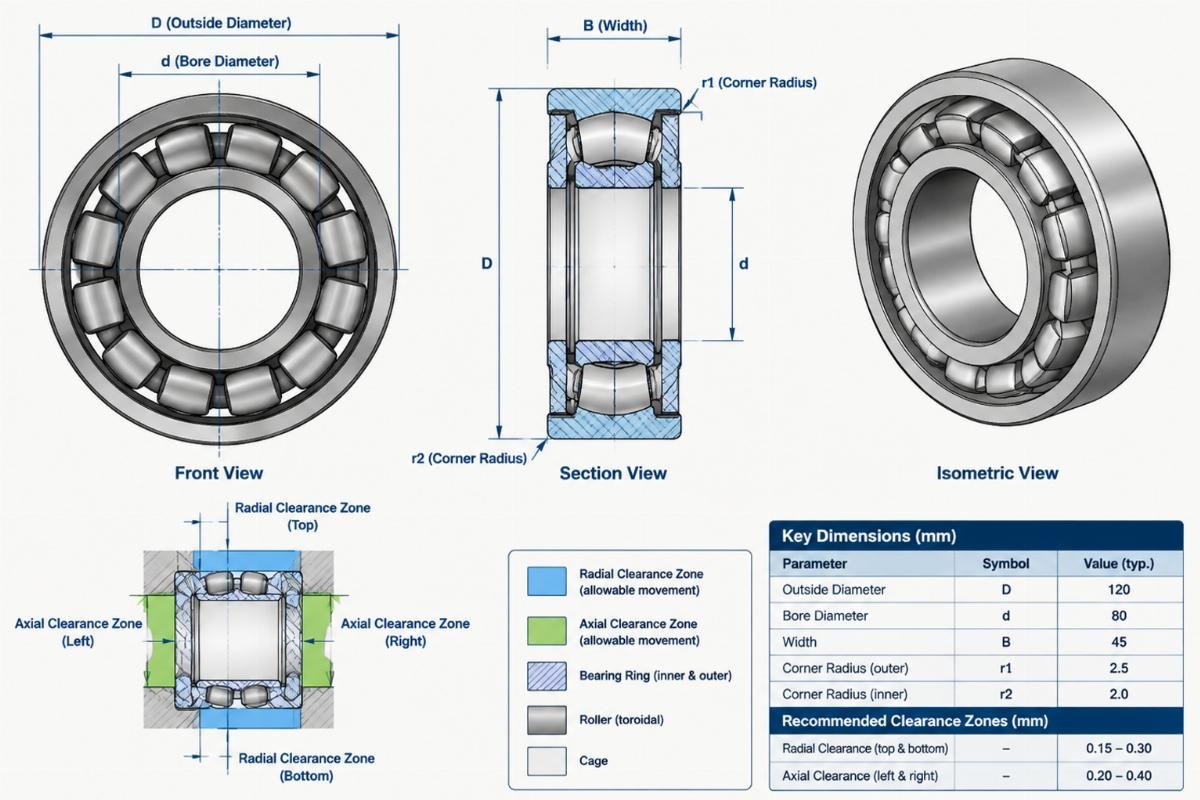

The term “CARB” is often used generically to refer to toroidal roller bearings, originally popularized by a major Swedish manufacturer. However, other brands have their own designations for similar technologies. Creating an accurate CARB bearing cross reference involves mapping these proprietary designations to generic ISO dimensions and ensuring that the internal clearance matches the operational environment. A common mistake is ignoring the clearance class. A bearing with standard clearance may fail in a high-temperature environment where a C3 or C4 clearance is required to accommodate thermal expansion. [NEED_CITE: ISO 5753 standard for internal clearance of rolling bearings]

A distributor in the Middle East once requested a quote for a specific CARB model. The available stock was a domestic equivalent with matching external dimensions. However, the original specification called for a C3 clearance due to the high operating temperatures of the steel mill application. The domestic unit was supplied with standard clearance. Although the bearing fit physically, it seized after a short period of operation. This incident highlights the importance of verifying not just the part number, but the specific suffixes indicating clearance and cage material when identifying SKF toroidal bearing equivalent options or other brand counterparts.

To avoid such issues, a systematic approach to cross-referencing is essential:

1. Identify the original bearing’s full designation, including all suffixes.
2. Extract the basic dimension code (bore, outside diameter, width).
3. Verify the internal clearance class (C2, CN, C3, C4, C5).
4. Check the cage material and lubrication type.
5. Confirm the misalignment angle tolerance.

Only after these parameters are aligned can a substitute be considered a true equivalent. This rigorous process ensures that the Toroidal roller bearing alternatives selected will perform reliably under the specific conditions of the application.

What Are the Risks of Mixing Brands in Customs Documentation?

Inconsistent branding between documents and cargo can lead to severe customs delays and seizure.

Global sourcing often involves mixing brands to optimize cost and availability. However, this practice introduces significant regulatory risks. Customs authorities in many countries strictly enforce rules regarding the accuracy of declared goods. If the commercial invoice lists a premium European brand but the physical goods are marked with a different manufacturer’s logo, the shipment may be flagged for inspection or even confiscated. This is particularly relevant when sourcing Toroidal roller bearing alternatives from diverse global suppliers.

The case in Antofagasta mentioned earlier is a prime example. The delay caused by the documentation mismatch resulted in additional storage fees and potential penalties for the importer. More importantly, it disrupted the mine’s maintenance schedule. To mitigate this risk, it is crucial to ensure that the description on the bill of lading and commercial invoice accurately reflects the actual goods. If using equivalents, the documentation should clearly state the generic technical description (e.g., “Toroidal Roller Bearing, ISO Dimension Series XYZ”) rather than relying solely on a specific brand’s part number. [NEED_CITE: International Chamber of Commerce guidelines on trade documentation accuracy]

Additionally, providing a technical equivalence certificate can help smooth the clearance process. This document should detail how the substituted bearing meets the same technical standards as the originally specified item. By proactively addressing potential discrepancies, buyers can avoid the pitfalls associated with mixed-brand shipments. This level of diligence is essential when dealing with Toroidal roller bearing alternatives in regulated markets.

When Should You Consider Cylindrical Roller Bearing Combinations?

In some non-locating applications, a combination of cylindrical roller bearings can serve as a functional alternative.

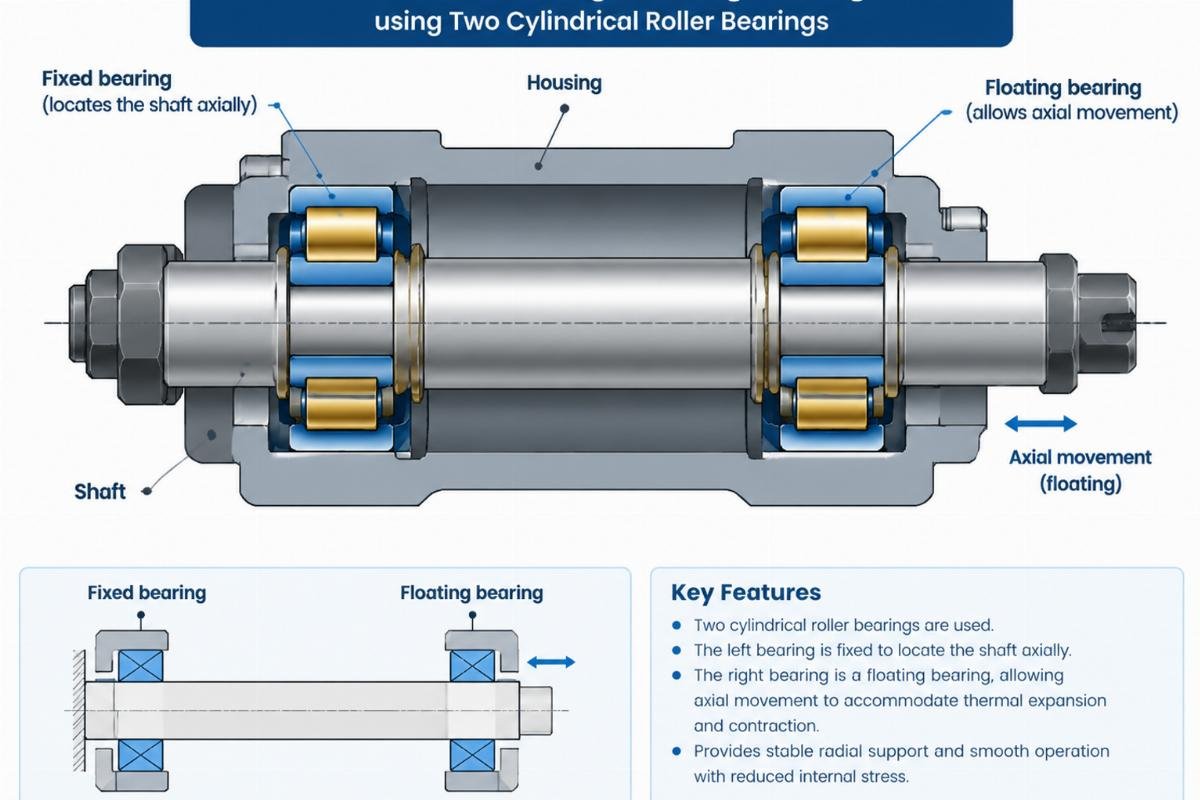

For applications where axial displacement is required but the load is primarily radial, a pair of cylindrical roller bearings can sometimes replace a single toroidal unit. This setup involves one locating bearing and one non-locating bearing, allowing for thermal expansion. However, this solution requires more complex housing design and precise alignment. It is not a simple drop-in replacement but rather a design-level alternative. [NEED_CITE: Design principles for floating bearing arrangements]

A wind farm operator in Europe explored this option for a gearbox application. The original toroidal bearings had long lead times. By redesigning the housing to accommodate two cylindrical roller bearings, they were able to source available stock and maintain operational continuity. This approach requires careful engineering analysis to ensure that the axial guidance is sufficient and that the load distribution remains optimal. While not always feasible for retrofits, it represents a viable strategy for new designs or major overhauls where flexibility is possible. Understanding these broader options expands the pool of potential Toroidal roller bearing alternatives.

Conclusion

Selecting the right substitute requires balancing technical precision with logistical reality.

Finding reliable Toroidal roller bearing alternatives is a multifaceted challenge that extends beyond simple part number matching. It demands a deep understanding of internal clearance, load dynamics, and the regulatory landscape of international trade. By prioritizing technical equivalence and ensuring documentation accuracy, buyers can mitigate risks and maintain operational efficiency. Whether opting for spherical bearings with caution, mapping CARB equivalents meticulously, or exploring cylindrical combinations, the key lies in informed decision-making supported by verified data and experienced guidance.
