6319 Bearing Supplier for Motors & Pumps: Genuine SKF, FAG, NSK Wholesale

Most pump failures are not caused by load, but by dust.

The core specification for a 6319 bearing in harsh motor and pump applications is not just its 95x200x45mm dimension, but the verification of genuine sealing integrity and traceable origin to prevent premature seizure in high-temperature, dusty environments.

I still remember the smell of burnt insulation winding through the dry heat of a desert pumping station. The motor had failed in less than three months. The maintenance team blamed the voltage fluctuation, but when I pulled the housing, the truth was obvious. The 6319 deep groove ball bearing inside was not just worn; it was packed with fine silica dust that had bypassed inadequate seals. It was a refurbished unit, disguised as new, lacking the precise clearance and seal quality required for such an aggressive environment. That failure did not happen because the load was too high. It happened because the basic specs were matched, but the environmental reality was ignored. [NEED_CITE: common failure modes in arid industrial environments per ISO 15243]

Selecting the right component requires looking beyond the catalog number. A 6319 bearing is a standard workhorse, but its performance varies drastically depending on whether it is a genuine, sealed unit from a reputable 6319 bearing supplier for motors & pumps or a counterfeit open-type variant.

What Are the Core 6319 Bearing Specs?

Dimensions alone do not guarantee compatibility; load ratings and internal clearance define survival.

The 6319 deep groove ball bearing is defined by its boundary dimensions: 95mm bore, 200mm outer diameter, and 45mm width. These are fixed by international standards. However, for motors and pumps, the critical data lies in the dynamic and static load ratings. A standard 6319 bearing typically offers a dynamic load rating in the range of 150kN and a static load rating near 120kN. [NEED_CITE: standard load rating calculations per ISO 281]

When sourcing from a 6319 bearing supplier for motors & pumps, buyers must verify these ratings against the specific application. A pump handling slurry exerts different radial loads than a high-speed motor spindle. The speed limit is another crucial factor. Standard grease-lubricated units have lower speed limits compared to oil-lubricated or specialized ceramic-hybrid variants.

The table above illustrates that while dimensions remain constant, the protective features change the operational envelope. An open bearing might suffice for a clean, indoor motor, but it is a liability in a mining pump. A reliable 6319 bearing supplier for motors & pumps will provide technical datasheets that clarify these distinctions, ensuring the selected unit matches the mechanical stress profile. [NEED_CITE: bearing selection guidelines for heavy-duty pumps]

How Do Seals Impact 6319 Performance in Pumps?

Open bearings are cost-effective only until the first dust particle enters the raceway.

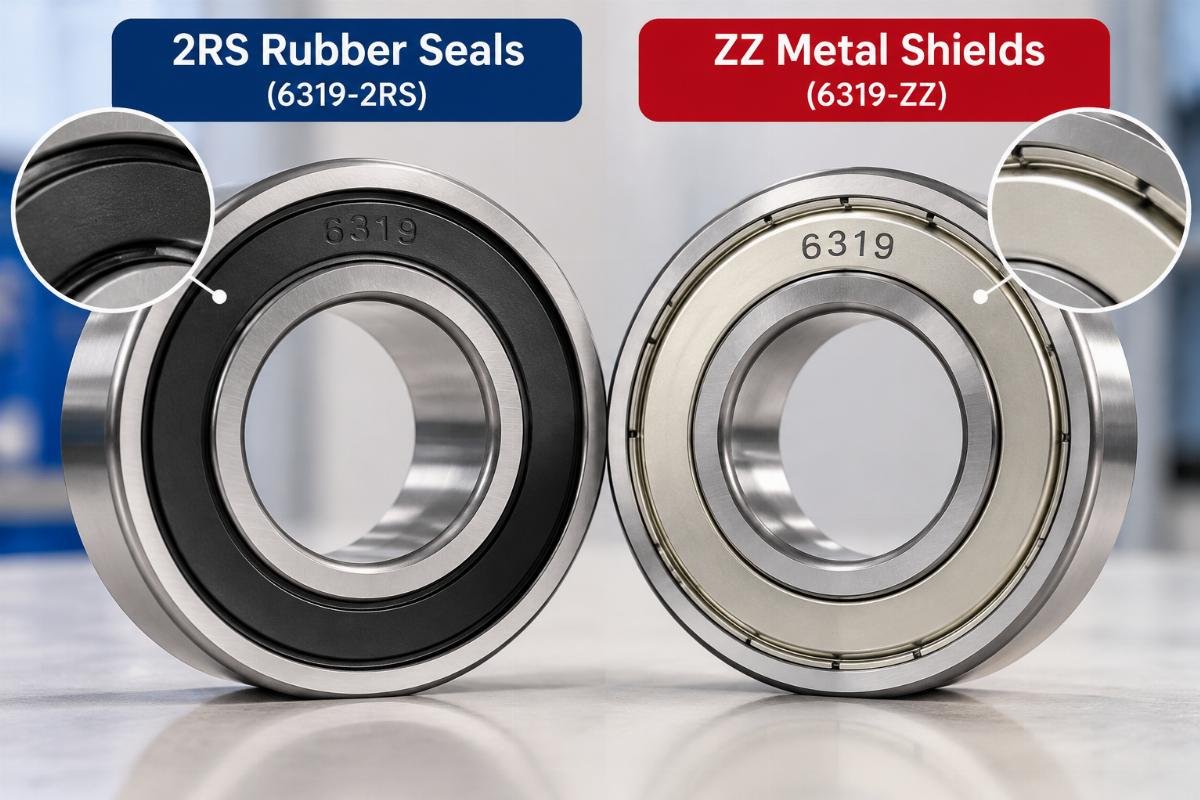

The choice between open, ZZ (metal shield), and 2RS (rubber seal) configurations determines the bearing’s lifespan in contaminated environments. In pump applications, water ingress and abrasive dust are constant threats. An open 6319 bearing allows free lubrication flow but offers zero protection. It is suitable only for enclosed, clean housings with external sealing systems.

For most industrial pumps, especially those in outdoor or dusty settings, a 2RS seal is preferred. The rubber contact seal provides a barrier against moisture and particulates. However, this comes with a trade-off: increased friction and slightly lower speed limits. A metal shield (ZZ) offers non-contact protection, allowing higher speeds but less effective sealing against fine dust.

I once consulted for a water treatment facility where high-temperature pumps kept seizing. The original design specified open bearings with external labyrinth seals. The external seals had worn down, allowing steam and grit to enter. Switching to a genuine 2RS-sealed 6319 unit from a trusted 6319 bearing supplier for motors & pumps resolved the issue. The internal seal maintained lubrication integrity even when the external housing was compromised. [NEED_CITE: effectiveness of integrated seals vs external sealing in pump applications]

It is a common misconception that a higher load rating compensates for poor sealing. It does not. Contamination causes micro-pitting and surface distress, which leads to fatigue failure long before the load capacity is reached. Therefore, the seal type is not an accessory; it is a core spec.

Why Do 6319 Bearings Fail Prematurely in Motors?

Heat kills bearings faster than load, and counterfeit units accelerate the process.

Premature failure in motors is often attributed to electrical fluting or misalignment, but thermal breakdown of lubrication is a silent killer. In high-ambient temperatures, standard grease can oxidize and harden, losing its ability to separate the rolling elements. This leads to metal-to-metal contact and rapid wear.

Counterfeit bearings exacerbate this issue. They often use inferior steel with higher inclusion levels or improper heat treatment. This results in reduced fatigue life and poor dimensional stability under heat. A genuine SKF or NSK 6319 bearing is manufactured with high-purity steel and precise heat control, ensuring consistent performance. A fake unit may look identical but lacks the metallurgical integrity to withstand thermal cycles.

A Middle East steel mill experienced repeated motor failures on their cooling fans. The bearings were replaced every few months. Upon analysis, we found that the “genuine” bearings purchased from a local trader were counterfeits. The steel quality was substandard, and the grease was not rated for the operating temperature. Switching to a verified supply chain through a professional 6319 bearing supplier for motors & pumps eliminated the recurring failures. [NEED_CITE: impact of steel purity on bearing fatigue life]

Another frequent cause is improper installation. Driving a bearing onto a shaft with a hammer damages the raceways. Using proper induction heaters or hydraulic presses ensures the bearing seats correctly without internal damage. This is why technical support from the supplier is as valuable as the product itself.

How to Verify Genuine 6319 Bearings from Suppliers?

Traceability documents are the only defense against sophisticated counterfeits.

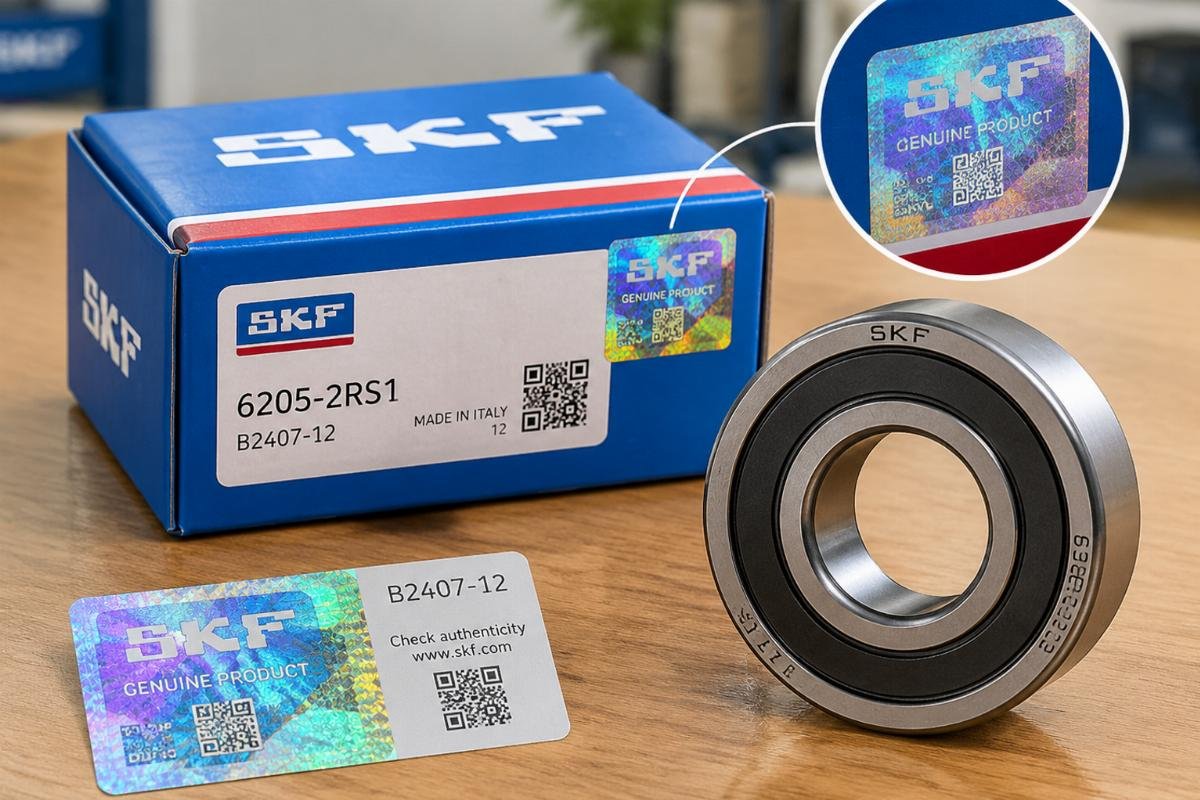

The market is flooded with fake bearings that carry authentic-looking logos. Visual inspection is often insufficient because packaging and laser marking can be replicated. The only reliable method is to demand full traceability. A genuine 6319 bearing from brands like SKF, FAG, or NSK comes with batch-specific documentation that links the unit to its production facility and quality control records.

When evaluating a 6319 bearing supplier for motors & pumps, ask for the certificate of origin and the manufacturer’s test report. These documents should include the batch number, which can be cross-referenced with the brand’s official database. If a supplier cannot provide this, the risk of receiving counterfeit goods is high.

I always advise clients to start with a small trial order to verify the documentation process. A reputable supplier will welcome this scrutiny. They understand that for MRO operators and OEMs, the cost of a single failure far outweighs the savings from a cheaper, unverified source. [NEED_CITE: industry best practices for anti-counterfeit bearing procurement]

Furthermore, check the physical attributes. Genuine bearings have smooth, polished surfaces and consistent grease fill. Counterfeits often have rough finishes, excessive play, or inconsistent grease distribution. However, these signs can be subtle, making documentation the primary verification tool.

Conclusion

Specs are meaningless without authenticity and environmental fit.

Selecting a 6319 bearing for motors and pumps requires more than matching dimensions. It demands a clear understanding of sealing needs, load conditions, and the critical importance of genuine sourcing. Counterfeit units and inappropriate seal choices lead to predictable, costly failures. By prioritizing traceability and technical verification from a reliable 6319 bearing supplier for motors & pumps, operators can ensure longevity and reliability in even the harshest industrial environments.
